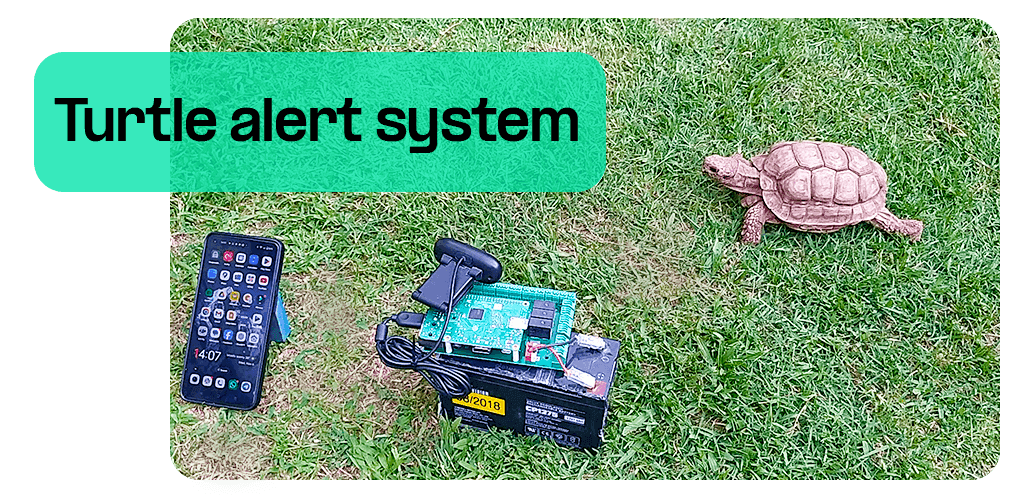

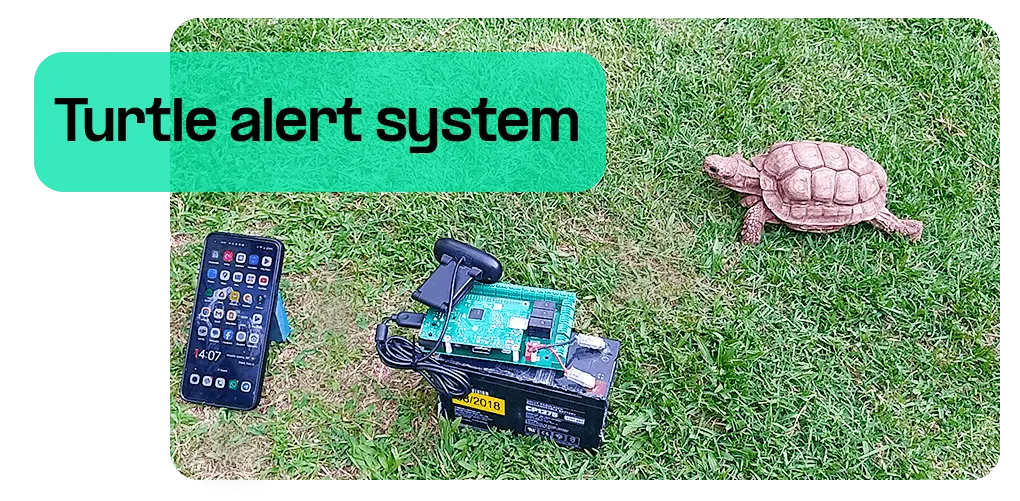

Turtle alert system built with Telnyx AI, IoT, and SMS

System Architecture: How Telnyx AI and SMS Power the Turtle Alert Pipeline

The turtle alert system we've built in this tutorial is more than a proof of concept — it demonstrates a production-ready pattern for combining IoT sensor data, AI-powered analysis, and programmatic SMS notifications into a real-time wildlife monitoring pipeline. Here's how the pieces fit together.

Architecture Overview

At a high level, the system has four layers:

1. Sensor/Edge Layer: IoT devices (temperature sensors, vibration sensors, camera traps) deployed at nesting sites capture real-time environmental data and events.
2. Ingestion and Processing Layer: A lightweight edge gateway or cloud function aggregates sensor data, applies threshold logic, and forwards significant events to the AI analysis pipeline.
3. AI Analysis Layer: Telnyx's AI capabilities (or an integrated LLM endpoint) evaluate event data, classify threat levels, and compose human-readable alert messages.
4. Notification Layer: Telnyx's SMS API delivers targeted alerts to field rangers, researchers, and program coordinators in real time.

Telnyx's Role in the Pipeline

Telnyx contributes at two critical junctures:

1. AI-Powered Alert Composition

Raw sensor data (e.g., temperature spike at nest site 7, camera trap trigger at 02:14 AM) is not human-ready on its own. By routing event data through Telnyx's AI integration or a connected language model, the system generates natural-language alerts that give responders the context they need to act — not just raw numbers.

Example AI-composed alert:

2. SMS Delivery via Telnyx Messaging API

Once the alert is composed, it's dispatched via the Telnyx Messaging API to the appropriate recipient list. The Telnyx platform handles carrier routing, delivery confirmation, and opt-out compliance automatically.

Code Example: Alert Dispatch

import telnyx
import json

telnyx.api_key = "YOUR_TELNYX_API_KEY"

def send_turtle_alert(nest_id, temp_celsius, motion_detected, recipients):
    # Compose alert message (in production, this would be AI-generated)
    alert_text = (
        f"⚠️ TURTLE ALERT — Nest {nest_id}: "
        f"Temp={temp_celsius}°C (threshold 33°C). "
        f"Motion={'YES' if motion_detected else 'No'}. "
        f"Check nest status immediately."
    )

    for recipient_number in recipients:
        telnyx.Message.create(
            from_="+19995550001",  # Your registered Telnyx number
            to=recipient_number,
            text=alert_text
        )
        print(f"Alert sent to {recipient_number}")

# Example usage from IoT event handler
event = {
    "nest_id": "SITE-07",
    "temperature": 34.2,
    "motion_detected": True
}

if event["temperature"] > 33.0 or event["motion_detected"]:
    send_turtle_alert(
        nest_id=event["nest_id"],
        temp_celsius=event["temperature"],
        motion_detected=event["motion_detected"],
        recipients=["+15555550101", "+15555550202"]  # Field ranger numbers
    )

Scaling the System

For a production deployment monitoring multiple nesting sites, the architecture extends naturally:

• Message queuing (e.g., AWS SQS or RabbitMQ) between the IoT layer and the notification layer ensures no alerts are dropped under load
• Telnyx's delivery webhooks provide real-time confirmation that messages were received, enabling retry logic for failed deliveries
• Dynamic recipient routing allows alerts to be escalated based on severity — a borderline temperature might alert a field researcher via SMS, while a critical threshold plus confirmed motion triggers calls to on-call rangers via Telnyx's Voice API

Conclusion: Conservation Meets Communications Infrastructure

Wildlife monitoring has historically been limited by the speed and reliability of human observation and radio communication. By integrating modern IoT sensors with AI analysis and Telnyx's programmable communications platform, organizations can build alert systems that respond to threats in seconds — not hours.

The turtle alert system demonstrates that protecting vulnerable species doesn't require exotic technology. It requires reliable, programmable communications infrastructure that meets the real-time demands of field conservation work.

Ready to build? Explore Telnyx's Messaging API and AI capabilities to start building your own IoT notification pipeline. Whether you're protecting sea turtles, monitoring wildlife corridors, or building environmental early-warning systems, Telnyx provides the communications layer your mission needs.
