Before you can use edge computing architecture, you need a mental model of how it's structured: four distinct layers, each with a specific job.
Edge computing is often discussed in terms of benefits: lower latency, better resilience, reduced bandwidth costs. Those are real. But before any of those benefits are available to you, you need a working mental model of how edge architecture is actually structured, what the components are, how data moves between them, and where your application logic sits in that picture.
What "Edge" Actually Means
Edge is not a place. It's a position in a topology.
In any networked system, there's a spectrum from the center to the periphery. The center is where traditional computing lives: large cloud regions with abundant resources, managed services, and centralized storage. The periphery, the edge, is where data originates: devices, sensors, users, network endpoints.
Edge computing means moving some of the computation from the center toward the periphery. Not all of it. Not randomly. Specifically, the computation that benefits from proximity to where events happen.
The "edge" in a given architecture might be:
Related articles
What all of these have in common: they're closer to the event source than a centralized cloud region. That proximity is the entire point.
Core Components of an Edge Architecture

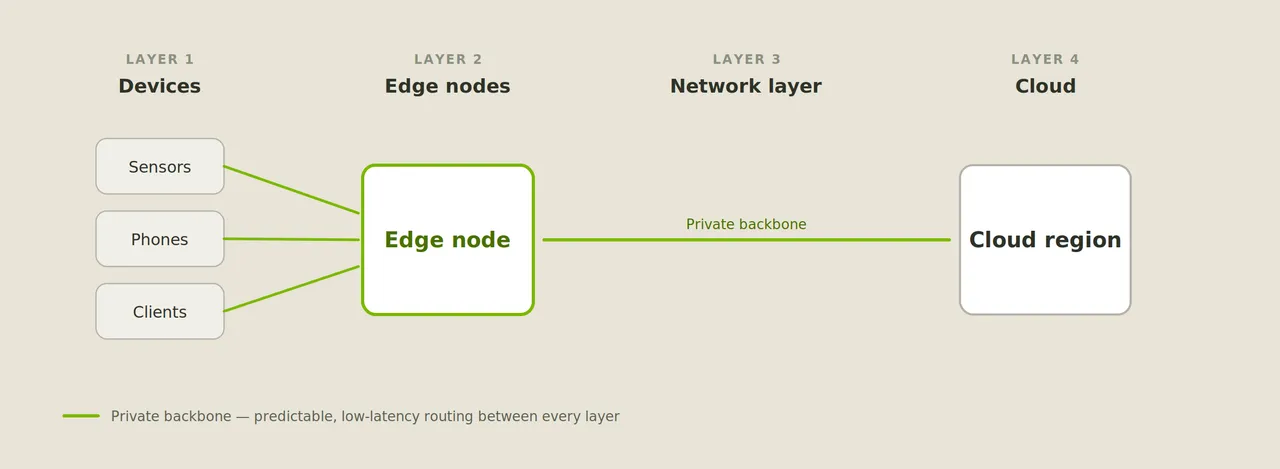

A well-designed edge system has four distinct layers. Each has a defined role. Understanding the boundary between them is the foundation of designing these systems well.
.png?prefix=cms-media)
Layer 1: Devices
Devices are where data originates. In IoT systems, these are sensors, actuators, cameras, meters, vehicles, or any hardware generating a continuous stream of readings or events. In communications systems, they're phones, softphones, or SIP endpoints. In user-facing applications, they're browsers and mobile clients.
Devices are typically more resource-constrained than the layers above them, with limited CPU, memory, and sometimes intermittent connectivity. Cross-device coordination and heavy orchestration generally run elsewhere, although on-device inference has grown substantially, especially on phones and modern sensors.
What devices do: Generate events, send data, receive instructions, or responses.
What devices don't do: Store large datasets, coordinate global state across nodes, run orchestration logic.
Layer 2: Edge Nodes
Edge nodes are the computational layer closest to devices. This is where the architectural decisions get interesting.
An edge node might be a physical server at a network facility, a container running on a regional compute cluster, or a serverless execution environment embedded within a network provider's infrastructure. What defines it is location: it's geographically and network-topologically close to the devices it serves.
Edge nodes handle the work that needs to execute before a cloud round-trip completes:
Filtering and aggregation — reducing a high-frequency sensor stream to structured events before forwarding upstream
Real-time inference — running a model locally to classify or respond to an event within milliseconds
Protocol translation — converting device-native protocols (MQTT, CoAP, SIP) into formats the broader system understands
Triggering actions — executing logic in the time window before forwarded data reaches the cloud
Edge nodes can be deployed as individual nodes or as small clusters for redundancy. They are not as resource-rich as cloud regions, but they don't need to be; their job is to handle specific, well-defined fast-path workloads, not general-purpose computing.
What edge nodes do: Process in real time, filter before forwarding, execute latency-sensitive logic, and act as the first intelligent layer after devices.
Layer 3: The Network Layer
The network layer is what connects devices to edge nodes, edge nodes to each other, and edge nodes to the cloud. It's the most underappreciated component in most architecture diagrams, and the one that most directly determines whether your latency targets are achievable.
There are two very different network models here:
Public internet routing — traffic hops across multiple autonomous systems, with variable latency, congestion sensitivity, and no guaranteed path. Fine for most web applications. Problematic for real-time systems.
Private network routing — traffic stays within a controlled backbone, with predictable routing, lower and more consistent latency, and no exposure to public internet congestion. This is what telecommunications providers, CDN operators, and some edge infrastructure providers offer.
For latency-sensitive architectures, the network layer is not a passive pipe. It's an active design constraint. A system with excellent edge nodes connected via public internet will still see unpredictable latency. A system with modest edge nodes connected via a private backbone will consistently outperform it on tail latency and jitter, which is what real-time workloads are actually bound by.
What the network layer determines: Actual round-trip latency, consistency of response times, resilience to congestion, and whether data locality guarantees can be maintained.
Layer 4: The Cloud Layer
The cloud layer sits at the center of the topology. It handles everything that doesn't need to be fast, local, or event-driven.
In an edge architecture, the cloud is still essential, it just has a narrower, more defined role:
Long-term storage — event logs, historical sensor data, archived records
Model training — using aggregated data from edge nodes to retrain and improve models deployed at the edge
Cross-region coordination — orchestrating behavior across multiple edge nodes or geographic deployments
Analytics and reporting — batch processing, dashboards, business intelligence over historical data
Management plan — deploying code to edge nodes, monitoring health, updating configurations
The cloud receives structured, pre-processed data from edge nodes rather than raw device streams. This dramatically reduces ingestion volume and cost compared to cloud-only architectures.
What the cloud layer does: Durable storage, analytics, model training, orchestration, and anything asynchronous or long-running. A mature edge architecture pairs fast local execution with durable, well-provisioned cloud storage; the two layers are complementary, not competing.
How Data Flows Through an Edge System
With the components defined, here's how a request or event actually moves through the system:
How data flows through an edge system
| Step | What happens | Detail |
Step 1 | Event originates at a device | A sensor records a reading, a user speaks into a voice interface, a vehicle crosses a geofence. The device sends a signal: a packet, a stream, a webhook trigger. |
Step 2 | Signal reaches the edge node | Because the edge node is geographically close and connected via a low-latency path, this hop takes single-digit to low double-digit milliseconds. |
Step 3 | Edge node processes the signal | Application logic executes here. The node might classify the event, run inference, apply a business rule, trigger an action, or transform the data, in milliseconds, without a cloud round-trip. |
Step 4 | Edge node responds or forwards | Responses to the device return directly from the edge node, fast. If the event needs storage or coordination, a structured summary is forwarded to the cloud. |
Step 5 | Cloud receives forwarded data | Durable storage, analytics, model updates, and cross-node coordination all happen asynchronously, without holding up the real-time path. |
The critical insight: steps 1 through 4 are completed before the cloud is even involved. The fast path and the deep path are architecturally separate. That separation is what makes real-time performance possible at scale.
Example: Real-Time Voice AI Processing
Abstract components are easier to understand with a concrete example. Here's how an edge architecture handles a real-time voice AI interaction.
The scenario: A customer calls a business. An AI agent responds, understands the caller's intent, and responds, all within a conversational time window.
What happens at each layer:
Device — The caller's phone (or SIP endpoint) sends an audio stream over the network.
Network layer — The call is routed through a telecommunications network. If that network has co-located compute, the audio stream can be intercepted at a point of presence close to the caller, before it ever traverses public internet to a distant cloud region.
Edge node — The audio stream arrives at an edge execution environment within the telecom network. Here, a serverless function handles speech-to-text transcription, passes the transcript to an AI inference layer, receives a response, and synthesizes audio, all within the same network segment as the inbound call.
Response — The synthesized audio returns to the caller from the edge node. Total round-trip: low tens of milliseconds. The conversation feels natural.
Cloud — A transcript of the interaction, along with structured metadata, is forwarded asynchronously for storage, analytics, and model evaluation.
Compare this to a cloud-only architecture, where the edge layer is absent entirely: the audio stream travels to a distant cloud region, inference runs there, and the response traverses the network back. Each conversational turn adds 150–300ms. The interaction feels like a satellite phone call. No amount of model improvement fixes that; it's a routing problem.
Key Design Principles for Edge Architecture
A few principles that separate well-designed edge systems from ones that create new problems while solving old ones.
Keep the fast path thin - Edge nodes are not general-purpose cloud servers. Design the logic that runs there to be specific, stateless where possible, and fast. Offload everything else.
Design for partial connectivity - Edge nodes should function, perhaps in a degraded mode, when cloud connectivity is unavailable. Build the fast path to be independent of the deep path.
Define the boundary deliberately - The most important architectural decision in an edge system is what runs at the edge and what runs in the cloud. This boundary should be explicit in your design, not an accident of deployment.
Match network model to latency requirements - If your workload genuinely requires sub-50ms response times, public internet routing between edge and device is likely not sufficient. The network layer is a design input, not an assumption.
Instrument both layers - Distributed systems are harder to debug than centralized ones. Build observability into both the edge and cloud layers from the start; latency histograms, event flow tracing, and node health monitoring are not optional in production.
