Understanding the Flajolet-Martin algorithm

The Flajolet-Martin algorithm is a probabilistic method designed to estimate the number of distinct elements in a dataset or data stream. Developed by Philippe Flajolet and G. Nigel Martin in 1984, this algorithm has become a cornerstone in various fields, including database management, data mining, and big data analytics.

Understanding the Flajolet-Martin algorithm

The Flajolet-Martin algorithm is used to approximate the count of unique elements in a stream of data. It operates by hashing each element and analyzing the binary representation of the hash values.

Hashing and binary representation

The algorithm uses a hash function to map each element in the dataset to a binary string. This binary string is treated as a sequence of coin flips, where each bit represents either a head or a tail.

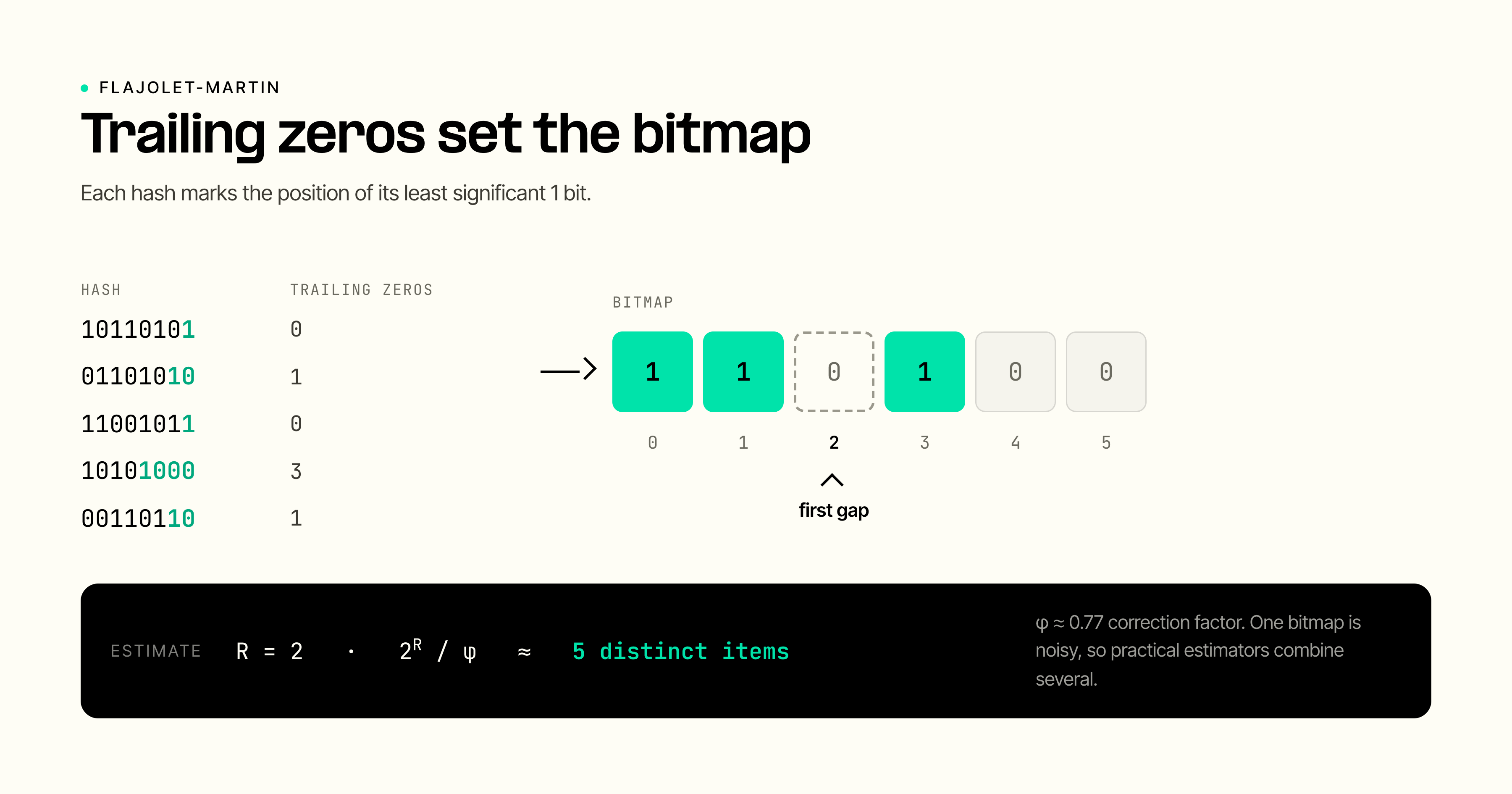

Finding the rightmost set and unset bits

For each hash value, the algorithm determines the position of the rightmost set bit and the rightmost unset bit. The position of these bits is crucial for estimating the number of distinct elements.

Core intuition

The core intuition behind the Flajolet-Martin algorithm can be understood through the analogy of coin flips. If you flip a coin repeatedly, the probability of getting a sequence of ( k ) consecutive tails is ( 2^{-k} ).

Similarly, in the binary representation of hash values, the length of the longest sequence of trailing zeros (or unset bits) can be used to estimate the number of distinct elements. This is because longer sequences of trailing zeros are less likely to occur, indicating a larger number of distinct elements.

Detailed procedure

Here’s how the Flajolet-Martin algorithm works:

1. Hash function selection: Choose a hash function that maps elements to binary strings of a fixed length, typically chosen based on the desired accuracy.
2. Hashing elements: Apply the hash function to each element in the dataset to obtain its binary representation.
3. Finding rightmost unset bits: Determine the position of the rightmost unset bit in each binary string.
4. Estimating cardinality: The maximum position of the rightmost unset bit across all elements is used to estimate the number of distinct elements. This is typically done by calculating ( 2^b ), where ( b ) is the position of the rightmost unset bit.

Improving accuracy

The original Flajolet-Martin algorithm has some limitations, particularly in terms of variance. To improve accuracy, multiple hash functions can be used by running the algorithm multiple times with different hash functions and aggregating the results.

This can be achieved by taking the mean or median of the estimates. Another approach is the HyperLogLog algorithm, which is a refinement of the Flajolet-Martin algorithm. The HyperLogLog algorithm splits the dataset into subsets, estimates their cardinalities, and combines them using the harmonic mean.

Applications

The Flajolet-Martin algorithm is widely used in various applications due to its efficiency and scalability. One common use is in database query optimizations, where it helps estimate the number of distinct elements in a database, crucial for optimizing queries.

In network topology and internet routing, the algorithm can estimate the number of unique nodes or paths in the network. It is also beneficial for big data analytics and data mining, especially when handling large datasets where storing the entire dataset in memory is impractical.

Benefits and limitations

Benefits

The algorithm is highly scalable and can handle large datasets efficiently without significant memory usage. It is also memory efficient, using a relatively small amount of memory compared to the size of the dataset. Additionally, the algorithm can estimate the number of distinct elements in a single pass through the data stream.

Limitations

One limitation is variance, as the algorithm can have high variance and may require multiple runs for accurate estimates. The performance of the algorithm is heavily dependent on the selection of hash functions. Finally, the algorithm is limited in applicability, as it is designed specifically for estimating the number of unique elements and does not provide information on the specific elements or their frequencies.

Final thoughts on the Flajolet-Martin algorithm

The Flajolet-Martin algorithm is a powerful tool for estimating the number of distinct elements in large datasets. Its ability to operate with a single pass and use minimal memory makes it highly scalable and efficient. While it has some limitations, particularly in terms of variance and hash function selection, these can be mitigated through techniques like running multiple instances and using refined algorithms such as HyperLogLog.
