Applications of GRUs in AI: From NLP to Time Series

What is a gated recurrent unit (GRU) in AI?

Gated recurrent units (GRUs) are a type of recurrent neural network (RNN) architecture designed to handle sequential data efficiently.

Introduced by Kyunghyun Cho et al. in 2014, GRUs address the vanishing gradient problem that traditional RNNs face, making them particularly useful for tasks involving time series prediction, natural language processing, and speech recognition.

Definition of a gated recurrent unit

A GRU is a variant of RNNs that uses gating mechanisms to control the flow of information.

Unlike traditional RNNs, GRUs do not suffer from the vanishing gradient problem, which occurs when the gradients of the loss function decay exponentially with time steps, making it challenging to learn long-term dependencies.

Architecture of GRUs

The GRU architecture includes two primary gates: the update gate and the reset gate. These gates help the model decide what information to retain and what to discard at each time step.

• Update gate: Determines how much of the past information should be passed along to the future. It is crucial for capturing long-term dependencies and deciding what to retain in the memory. [ z_t = \sigma(W_z \cdot [h_{t-1}, x_t]) ]
• Reset gate: Decides how much of the past information to forget. It allows the model to forget irrelevant information and is useful for making predictions based on the current state. [ r_t = \sigma(W_r \cdot [h_{t-1}, x_t]) ]

Mathematical equations

The operations within a GRU can be described by the following equations:

• Candidate Hidden State: [ \hat{h}t = \tanh(W \cdot [r_t \odot h{t-1}, x_t]) ]

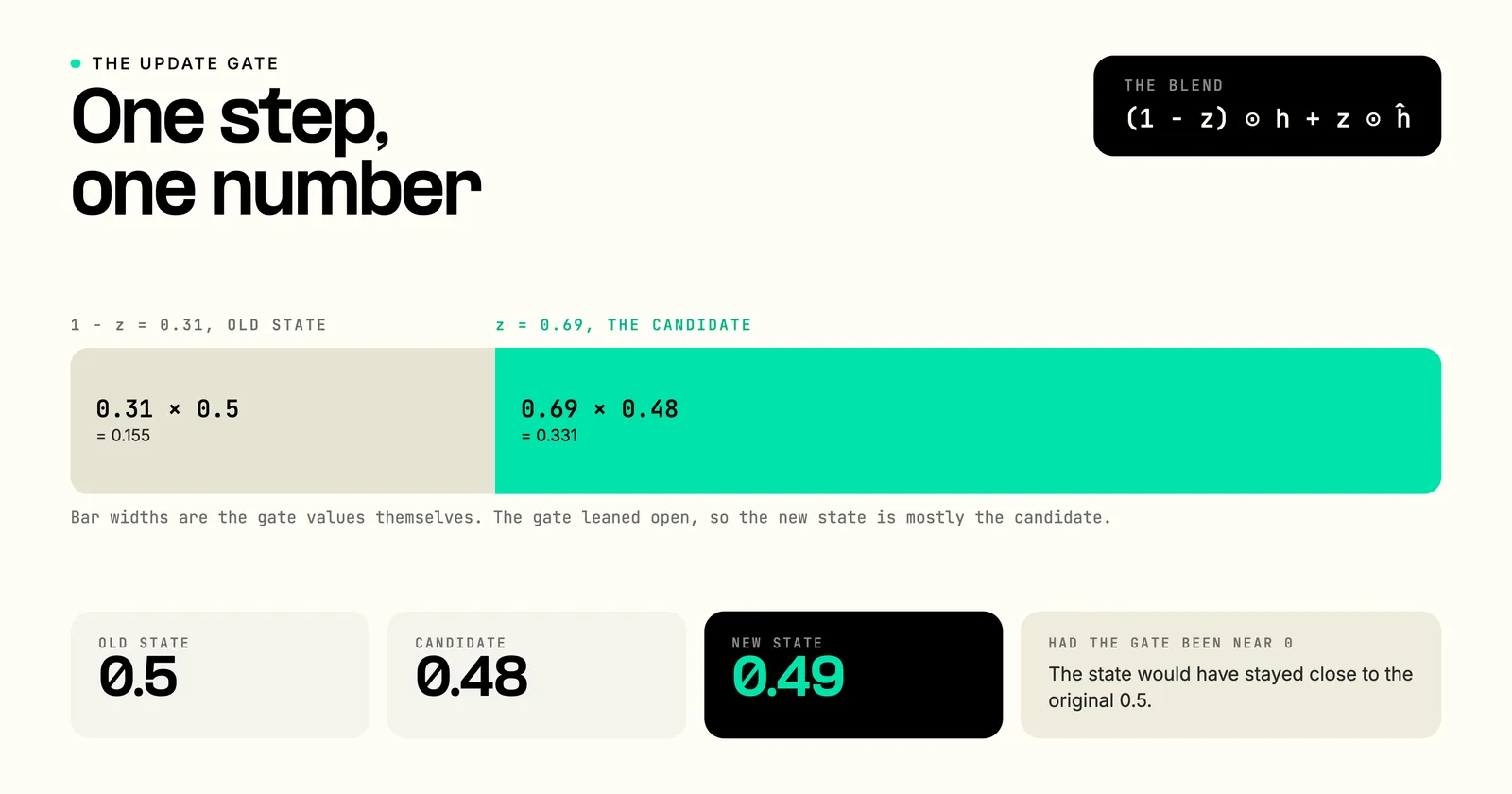

• Final Hidden State: [ h_t = (1 - z_t) \odot h_{t-1} + z_t \odot \hat{h}_t ]

How do GRUs work?

Gate mechanisms

GRUs use gate mechanisms to regulate the flow of information within the network. Here is a detailed breakdown of how these gates function:

• Reset gate: The reset gate determines how much past information can be forgotten. When the reset gate's activation is near zero, the model can drop irrelevant information from the past.
• Update gate: The update gate decides how much of the past information to retain and how much new information to integrate. It balances the retention of old and new information.

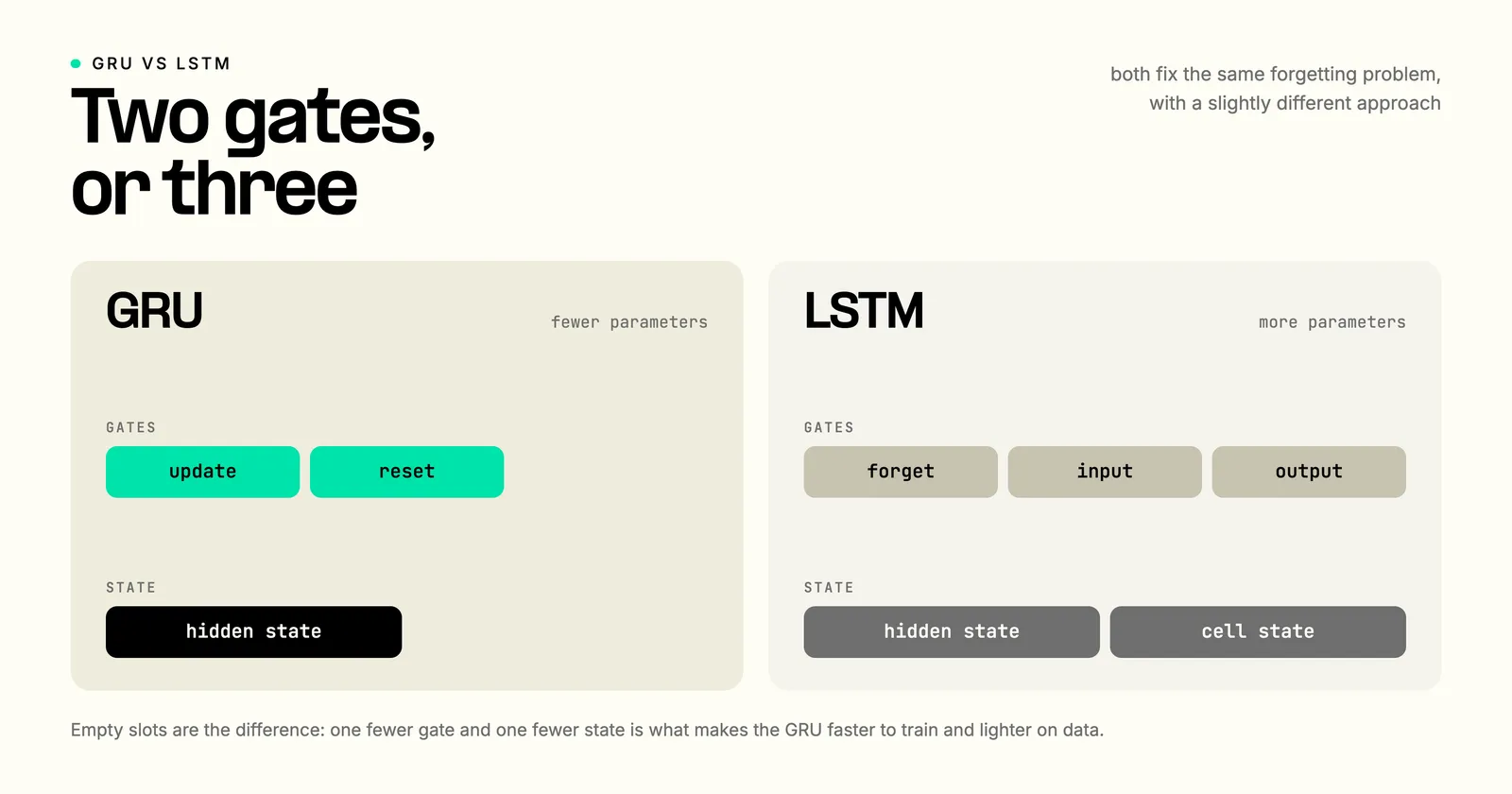

Comparison with LSTMs

GRUs are often compared to Long Short-Term Memory (LSTM) units, another popular RNN variant. While both address the vanishing gradient problem, GRUs have a simpler architecture with fewer parameters.

This makes GRUs faster to train and less computationally expensive compared to LSTMs, which use three gates (forget, input, and output) and a separate cell state.

Advantages of GRUs

Solving the vanishing gradient problem

GRUs effectively solve the vanishing gradient problem by using gating mechanisms to control the flow of information. This allows them to capture long-term dependencies within the input data.

Efficiency

GRUs are computationally more efficient than LSTMs due to their simpler architecture with fewer parameters. This makes them faster to train and less resource-intensive.

Flexibility

GRUs can handle sequences of varying lengths and are suitable for applications where the sequence length might not be fixed or known in advance.

Applications of GRUs

Language modeling

GRUs can predict the probability of a sequence of words or the next word in a sentence, making them useful for tasks like text generation or auto-completion.

Machine translation

GRUs can capture the context of the input sequence, making them practical for translating text from one language to another.

Speech recognition

GRUs can process audio data over time to transcribe spoken language into text. They are particularly effective in speech recognition tasks due to their ability to handle sequential data.

Time Series Analysis

GRUs effectively predict future values in a time series, such as stock prices or weather forecasts. Their ability to capture dependencies across time steps makes them well-suited for time series analysis.

Variations of GRUs

Minimal gated unit (MGU)

The MGU is a simplified form of the GRU where the update and reset gate vectors are merged into a single forget gate. This reduces the complexity of the model further.

Light gated recurrent unit (LiGRU)

The LiGRU removes the reset gate altogether and replaces the tanh activation function with the ReLU activation function. It also applies batch normalization (BN) to the inputs.

Challenges and considerations

While GRUs offer several advantages over traditional RNNs and LSTMs, there are some key challenges and considerations:

• Complexity: GRUs may struggle to capture long-term dependencies in complex sequences compared to LSTMs. If the task requires remembering information from distant points in the sequence, LSTMs might be a better fit.
• Emerging Architectures: New RNN architectures like transformers are emerging and showing promising results, potentially exceeding GRUs in specific tasks.

Gated Recurrent Units are a powerful tool in the deep learning toolkit, especially for handling complex sequence data.

Their ability to capture long-term dependencies and maintain a form of memory through gating mechanisms makes them suitable for a wide range of applications involving sequential inputs.

As research continues to evolve, GRUs remain an integral part of many state-of-the-art models in various domains of artificial intelligence.

Contact our team of experts to discover how Telnyx can power your AI solutions.
