Architecture insights: MXU and TPU components

The Matrix Multiply Unit (MXU) is a critical component of the Tensor Processing Unit (TPU), a specialized hardware accelerator designed for machine learning tasks. TPUs are application-specific integrated circuits (ASICs) optimized for tensor operations like matrix multiplications, providing greater efficiency than traditional CPUs and GPUs.

What is a TPU?

A TPU is built for high-throughput AI inference and training, focusing on tensor computations fundamental to many AI algorithms. It was introduced by Google to enhance the performance of TensorFlow, an open-source machine learning platform used for applications such as image classification, object detection, and speech recognition, supporting the development of the machine learning framework.

The role of MXU in TPU

At the heart of a TPU is the MXU, which executes large numbers of multiply-accumulate operations in parallel, significantly accelerating machine learning computations by leveraging parallel processing. This capability allows TPUs to efficiently handle vast datasets and complex AI models, ensuring compute efficiency.

Architecture of TPU

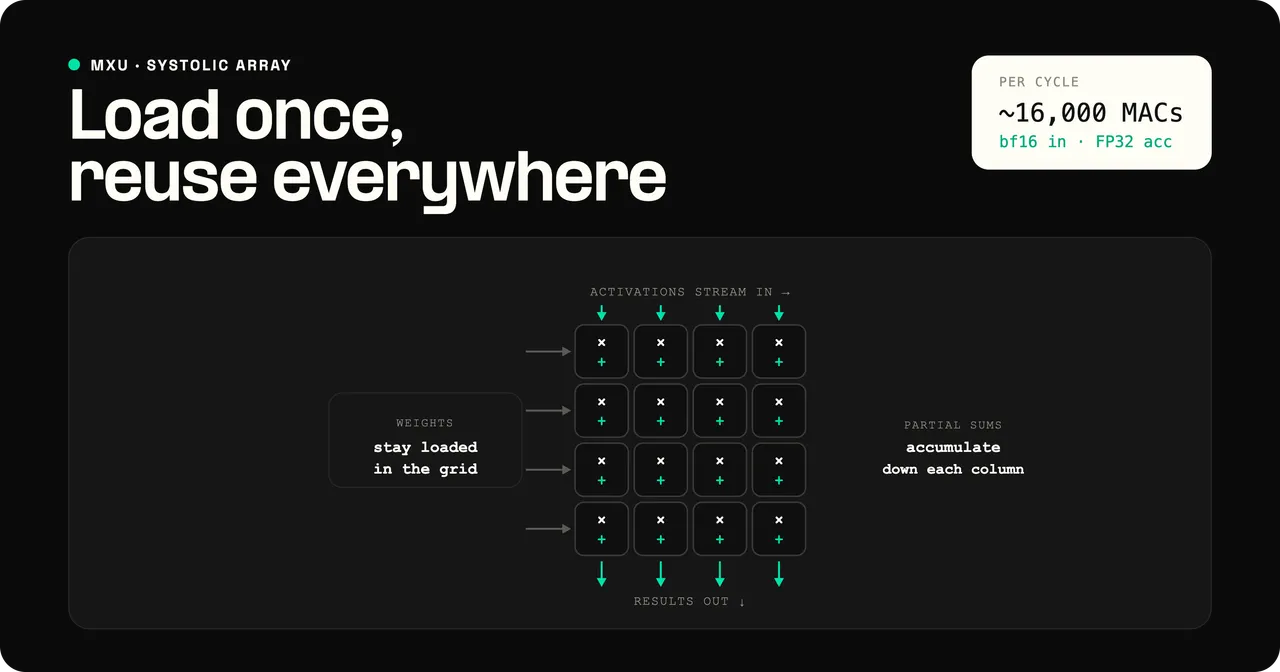

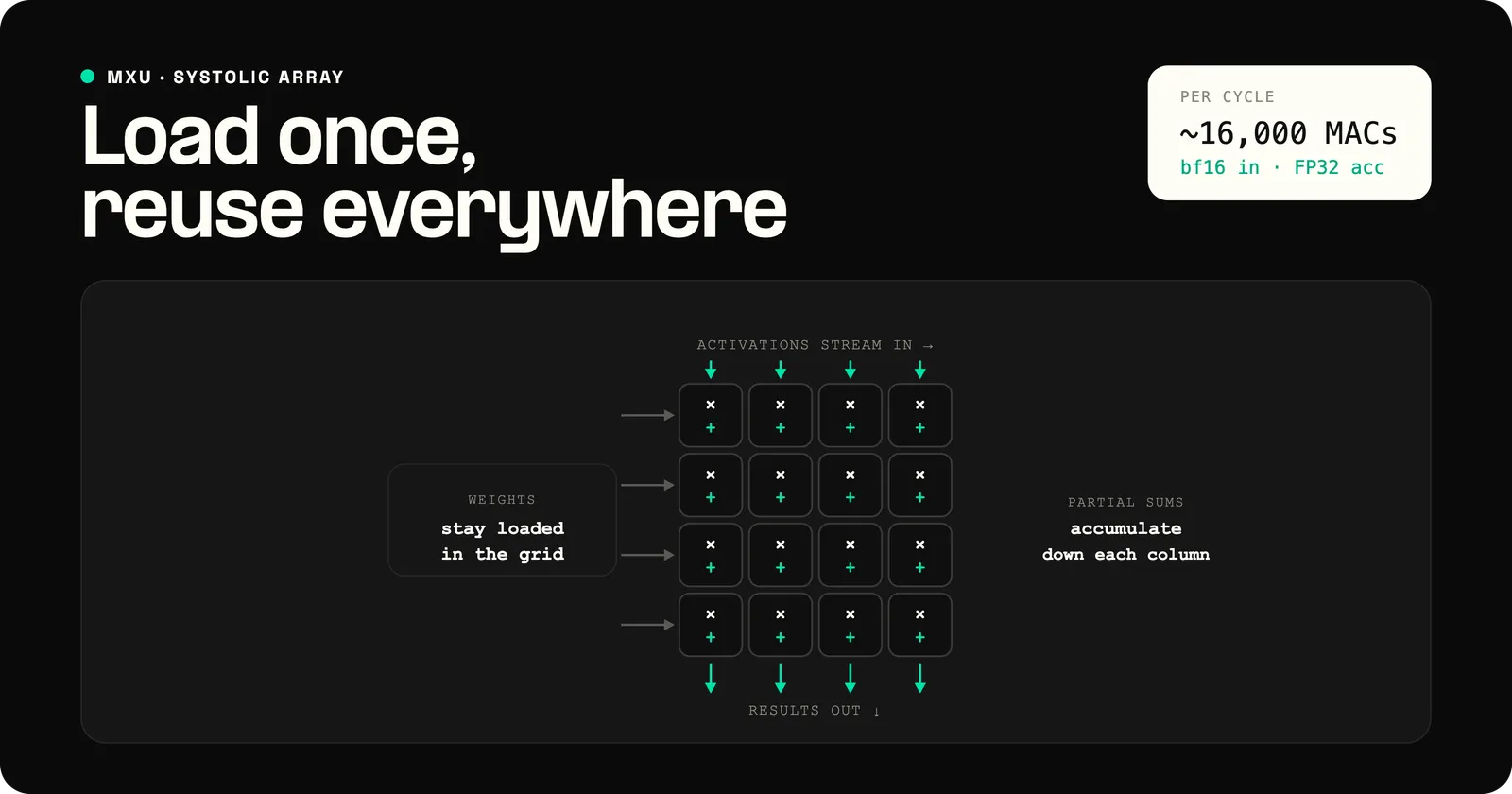

A TPU chip contains multiple TensorCores, each consisting of an MXU, vector unit, and scalar unit, forming an optimized hardware architecture. The MXU, arranged in a systolic array, provides the primary compute power, while the vector unit performs activations and softmax calculations, and the scalar unit handles control flow and memory management, effectively managing the compute pipeline.

Advantages of TPU over traditional hardware

High throughput

TPUs are optimized for high-throughput AI inference and training, making them ideal for large-scale machine learning applications and supporting AI scalability.

Energy efficiency

They perform more computations per watt of power, reducing both power consumption and heat generation and improving power efficiency.

Specialization

Unlike general-purpose chips, TPUs are designed specifically for tensor operations, enhancing performance and efficiency through ASIC specialization.

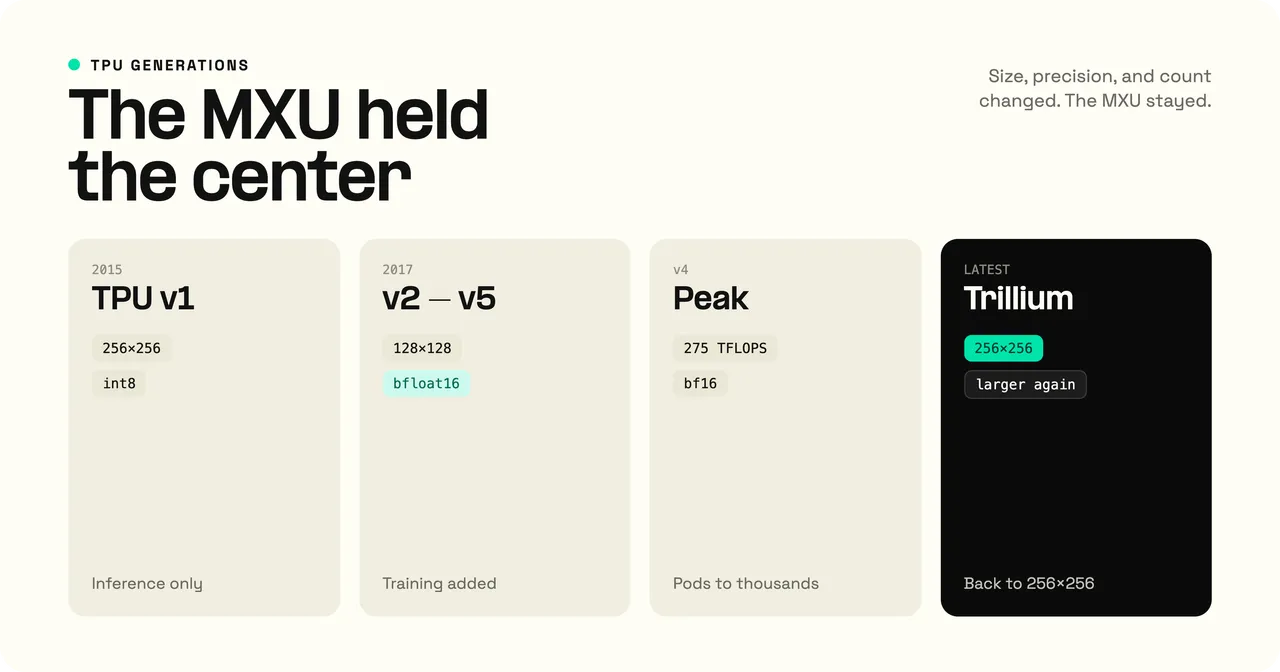

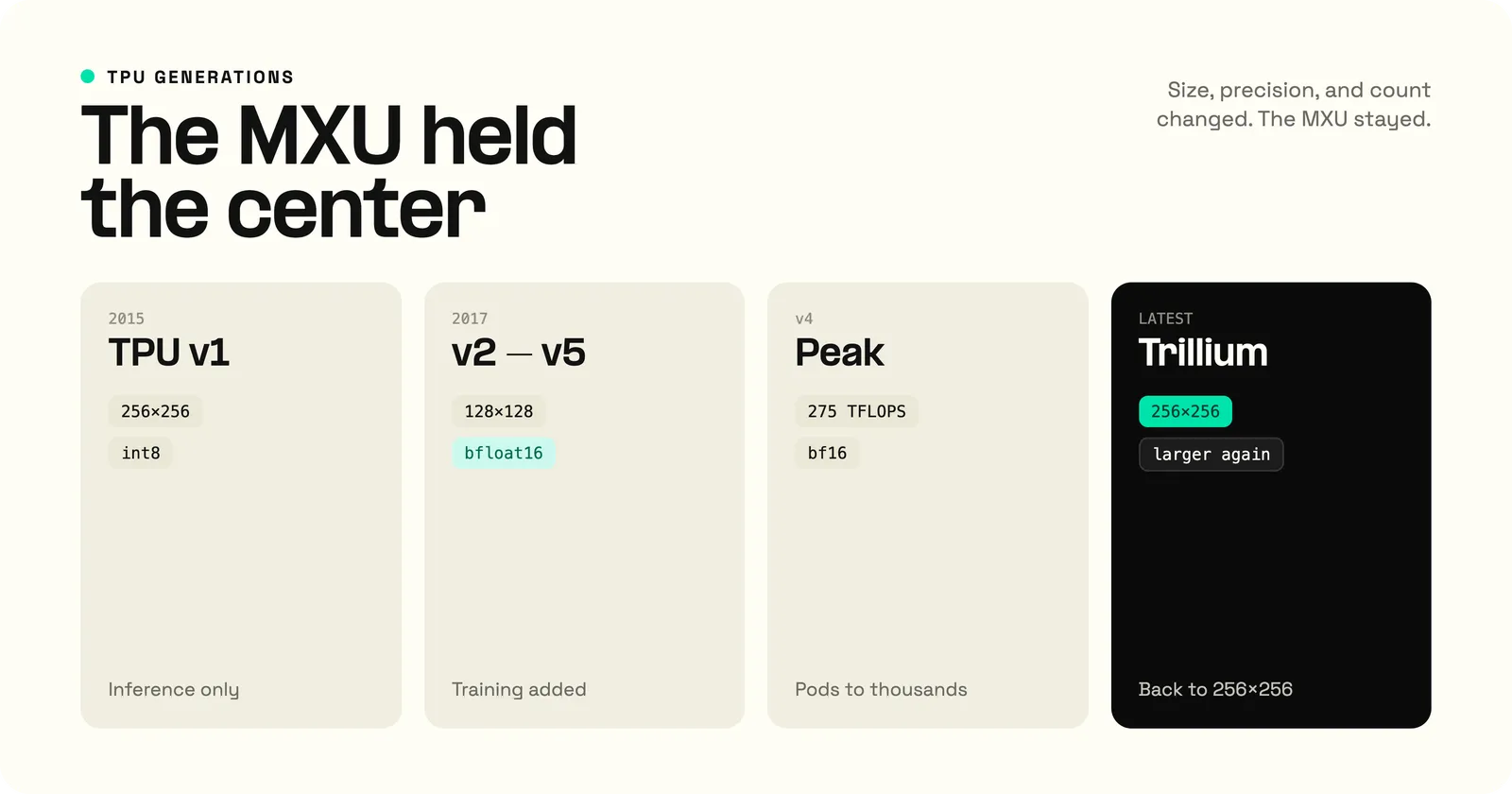

Generations of TPU

• TPUv1: An 8-bit matrix multiplication engine optimized for TensorFlow acceleration, marking the start of the early TPU architecture.
• TPUv2: Introduced floating-point support for both training and inference, enhancing precision capabilities.
• TPUv3: Offered double the performance of TPUv2 and increased scalability, providing higher compute power.
• TPUv4: Achieved over 2x performance improvements compared to TPUv3, driving next-gen AI acceleration.

Real-world applications of TPUs

TPUs have revolutionized AI applications by drastically reducing computation times. For example, Google leveraged TPUs to accelerate Street View image processing, achieving significant time savings and showcasing optimized AI workflows. Additionally, TPUs have cut neural network training times from days to hours, enabling rapid AI advancements through fast model training.

Comparison with GPUs

While GPUs are highly versatile for parallel processing, TPUs are designed specifically for tensor computations, making them more efficient for AI tasks that depend heavily on matrix multiplications, as shown in this AI hardware comparison and this analysis of hardware specialization.

Future of TPUs

As AI technology progresses, the demand for specialized hardware like TPUs will continue to grow. Future TPU generations may integrate new innovations like quantum computing to further enhance performance and efficiency.

Technical specifications of MXU

An MXU in a TPU is capable of performing 16,000 multiply-accumulate operations per cycle, using bfloat16 format for inputs and FP32 for accumulations, showcasing high-performance computing. This makes it ideal for high-speed machine learning computations.

The impact of MXU and TPU on AI computing

The MXU is a fundamental part of the TPU, enabling efficient tensor computations essential for AI workloads. With its specialized hardware design, the TPU has become a key part of modern AI infrastructure, delivering unmatched performance and efficiency for machine learning applications.
