IoT Devices: Definition, Examples, and How to Connect Them
Learn what IoT devices are, see examples by category, and compare the connectivity each device needs, with cellular data from $0.01 per MB.
Takeaways
IoT devices are hardware with embedded sensors or actuators that connect to a network and work without a person operating them. Each type needs a specific kind of connectivity, and once you know which one and the published per-MB price of cellular data, you can size a fleet before you order hardware.
- They fall into three categories: consumer (smart speakers, thermostats, fitness watches), enterprise (dash cameras, point-of-sale terminals, safety wearables) and industrial (smart meters, vibration and tank sensors).
- Home gadgets mostly ride Wi-Fi, Bluetooth LE or Zigbee behind a router. Anything that moves or sits outside Wi-Fi range needs cellular or satellite.
- Cellular connectivity for a fleet through a single IoT eSIM costs from $0.01 per MB on 650+ networks in 180+ countries, with no minimum order.
What are IoT devices?
IoT devices are physical objects with an embedded sensor or actuator, a processor and a network connection, built to collect data or act on it without a person operating them. The GSMA, the industry association of mobile network operators, publishes the definition most of the industry works from.
Definition: The GSMA defines IoT as "the network of physical objects that contain embedded technology to communicate and sense or interact with their internal states or the external environment". For one device, the embedded technology is a sensor, a processor and a radio, and the internal state it reports can be as small as a battery level.
IoT devices full form and meaning
IoT stands for Internet of Things, so the full form is Internet of Things device. The standards draw no hard line around the term: 3GPP TS 23.101 groups phones, computers and IoT devices together as User Equipment. The practical distinction is human interaction. A device is called IoT when it does its job with nobody driving it, and three checks settle most cases:
- It senses or acts on the physical world. A smart meter measuring consumption passes. A cloud server fails.
- It connects to a network to send or receive data. A GPS tracker reporting over LTE passes. An offline digital thermometer fails.
- It does its job without a human operating it. A tank level sensor passes. A laptop fails.
Are smartphones and computers IoT devices?
Smartphones and computers are usually left out. Each has sensors, a processor and a modem, so it passes the first two checks, but it exists to be operated by a person and fails the third. The line moves when the same hardware runs unattended: a phone bolted into a kiosk, or a mini PC logging machine data on a factory floor, is doing an IoT device's job.
See Telnyx IoT SIM if your device is one of thousands that must stay online with nobody nearby: one eSIM on 650+ networks in 180+ countries.
How do IoT devices work?
IoT devices work by sampling a value with a sensor, packaging it in a microcontroller (MCU) and sending it through a modem over a network to a cloud application, which can send commands back.
Most IoT traffic flows outbound, but firmware updates and eSIM profiles need the thin return path too.
What is inside an IoT device
| Component | What it does | Typical choice |
|---|---|---|
| Sensor | Measures one physical quantity | Temperature, GPS, vibration, gas, humidity, pressure, level, accelerometer |
| MCU | Packages and schedules data | Low-power microcontroller |
| Modem | Sends data over a network | Wi-Fi, BLE, LTE-M, LTE Cat 1 bis, LTE, satellite |
| Antenna | Sets radio reach | Internal or external |
| SIM or eSIM | Identifies the device to a cellular network | Removable triple-size SIM, embedded MFF2, downloadable eSIM profile |
| Power | Keeps the device running | Battery or mains converter |
| Housing | Protects against the environment | IP-rated enclosure |
The SIM (subscriber identity module) is the one line a connectivity provider supplies. Telnyx eSIMs (embedded SIMs) come as triple-size removable SIMs, embedded MFF2 (machine form factor) chips or downloadable eSIM profiles. They comply with the GSMA remote SIM provisioning specifications SGP.02 and SGP.22 and support BYO-eUICC (bring your own embedded universal integrated circuit card), so a device maker can load a Telnyx profile onto its own eUICC over the air.

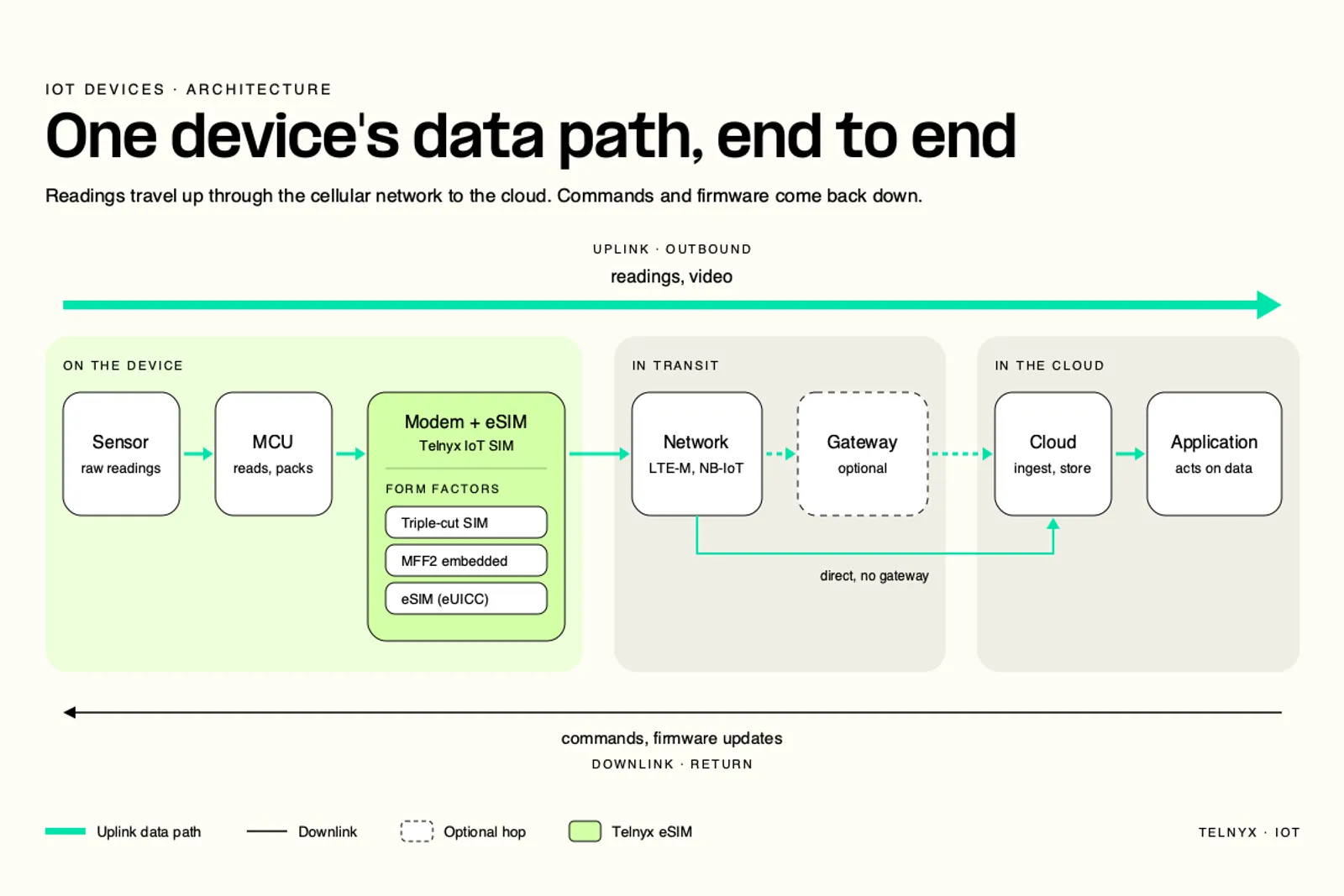

From sensor to cloud: the IoT device data path
- The sensor samples a value, such as a temperature or a GPS fix.
- The MCU packages the reading, often as an MQTT message, and decides when to send it.
- The modem transmits it over the chosen network, using the SIM to authenticate on cellular.
- The cloud receives and stores the reading.
- An application acts on it through a dashboard, an alert or a billing run.
IoT traffic is mostly outbound. A camera streams video and a meter reports readings, and only some devices, such as smart lights, take commands. Every device still needs an inbound path for over-the-air firmware updates, remote SIM provisioning and device management. Budget for it when monitoring IoT traffic.
Where IoT gateways fit
A gateway is a physical box or a piece of software that bridges devices to the cloud and can preprocess data at the edge, for example by averaging 60 readings into one. IoT devices on Bluetooth LE, Zigbee or LoRaWAN need one because their radios cannot reach the internet alone. A device with its own cellular modem and SIM talks to the cloud directly.
Examples of IoT devices
Examples of IoT devices sort into three tiers, consumer, enterprise and industrial, and each one depends on one main sensor.
IoT devices examples in daily life
Common IoT devices at home include the smart speaker (microphone), the smart thermostat (temperature sensor), the robot vacuum (accelerometer and proximity sensors), the fitness watch (heart-rate sensor) and the video doorbell (motion sensor and camera). Nearly all of them sit behind a home router.
Examples of IoT devices in business
Offices and shops run conference-room occupancy sensors, RFID (radio-frequency identification) inventory tags and point-of-sale terminals. Vehicles and field staff carry the devices that move: 4G (fourth-generation cellular) dash cameras and other telematics devices in trucks, and lone-worker safety wearables. When a wearable or tracker drops offline, the fault usually starts on the device side, in the modem, the SIM or the network it attached to.
Industrial IoT device examples
Industrial sites use vibration sensors on turbines for predictive maintenance, pressure and level sensors on tanks, and gas sensors for leak detection. Utilities and cities deploy smart electricity and water meters, and fill-level sensors in municipal bins for IoT waste management. Hospitals use patient monitors that report vitals to clinicians.
Smart meter
Sensor: consumption metering. Network: LTE-M.
Turbine vibration sensor
Sensor: vibration. Network: LTE or LoRaWAN.
Waste-bin fill sensor
Sensor: level. Network: LTE-M.
Sensor types and the problems they solve
| Sensor type | Device example | What it solves |
|---|---|---|
| Temperature | Refrigerated shipping container | Spoilage |
| Location (GPS) | Asset tracker | Lost or stolen equipment |
| Vibration | Wind turbine monitor | Predictive maintenance |
| Gas | Leak detector | Safety |
| Humidity | Grain store monitor | Food quality |
| Pressure | Tank sensor | Fill level |
| Level | Municipal waste bin | Collection routing |
| Accelerometer | Parcel tracker | Damage in transit |
A tracker or wearable that crosses a border can go dark on a single-carrier SIM once it leaves that carrier's network.
Familiar is not the same as typical. Google Home and Amazon Alexa are well-known IoT devices, but business fleets are built from GPS trackers, meters and environmental monitors rather than home assistants. Those are the devices that leave Wi-Fi range.
Which IoT devices belong on Telnyx IoT SIM
The IoT devices that belong on Telnyx IoT SIM are the ones that move, cross borders or sit outside Wi-Fi range for years.
IoT devices that outgrow consumer SIMs and single-carrier contracts
Five device types outgrow a consumer SIM or a single-carrier contract first: GPS asset trackers, lone-worker wearables and standalone watches, 4G dash cameras and fleet telematics units, smart meters and remote sensors, and point-of-sale terminals.
Signs a fleet has outgrown its SIMs
- Devices go dark when they cross a border.
- Roaming charges show up on the bill.
- Every new market means another carrier contract.
- A carrier retiring a network takes devices offline.
One eSIM covers 650+ networks in 180+ countries.
What Telnyx IoT SIM gives each IoT device type
A single Telnyx IoT SIM connects to those networks with multi-IMSI and multi-network coverage, automatic failover and intelligent network steering. It needs no SIM swapping and carries no data roaming fees, so a device keeps working when it moves between countries or its current network drops.
| Device type | Problem on the current SIM | What Telnyx IoT SIM gives it |
|---|---|---|
| GPS asset tracker | Goes dark or pays roaming across a border | One eSIM, automatic failover, no data roaming fees |
| Lone-worker wearable or standalone watch | Drops when its one carrier has no signal | Multi-network coverage and intelligent network steering |
| 4G dash camera or fleet telematics unit | Video overruns a per-device plan | Data pooling and data limits per SIM group |
| Smart meter or remote sensor | Installed once, no visit to swap a SIM | Embedded MFF2 chip, eSIM profiles provisioned over the air |
| Point-of-sale terminal | Payment traffic sits on a public network | Public or private IPs, encrypted private IoT networks without custom hardware or firewalls |
Moving a fleet of IoT devices onto Telnyx
- Order a small batch of removable triple-size SIMs, with no minimum order quantity, and test them in every country the devices operate in.
- For devices already in the field with their own eUICC, load a Telnyx profile over the air through BYO-eUICC instead of recalling hardware.
- For the next hardware run, design in the embedded MFF2 chip (available through sales) or a downloadable eSIM profile.
- Pick the pricing model that matches how the fleet uses data: pay as you go from $0.01 per MB, standby mode, data pooling or zone-based billing.
Before a hardware order, check coverage for the network type your modem uses in each market. The developer docs carry setup tutorials for Raspberry Pi, PepWave and other common devices.
How to connect and manage IoT devices at scale
Connecting IoT devices at scale means matching each device to one connectivity option, and cellular data starts at $0.01 per MB on 650+ networks in 180+ countries.
Which connection does your device need?
Pick the closest match.
Choosing connectivity for IoT devices
Start with range, then weigh power draw against bandwidth. Cost follows data volume. Movement overrides the rest: Wi-Fi, Bluetooth LE and Zigbee need a router or hub you control, LoRaWAN needs gateways you deploy, and only cellular and satellite work anywhere without you owning the local infrastructure.
Range, power and bandwidth by option
| Option | Range, power draw | Bandwidth |
|---|---|---|
| Wi-Fi | Tens of metres, high | High |
| Bluetooth LE | About 10 m, very low | Low |
| Zigbee/Z-Wave | Tens of metres per hop, very low | Low |
| LoRaWAN | Kilometres, very low | Bytes per message |
| LTE-M | Carrier coverage, low | About 1 Mbps |
| LTE Cat 1 bis | Carrier coverage, medium | Up to 10 Mbps down |
| LTE (4G) | Carrier coverage, high | Tens of Mbps |
| 5G | Carrier coverage, high | Hundreds of Mbps |
| Satellite | Open sky, high | Low to medium |
Best fit and Telnyx coverage by option
| Option | Best for | Telnyx |
|---|---|---|
| Wi-Fi | Smart speakers, thermostats, video doorbells | No |
| Bluetooth LE | Phone-paired fitness watches | No |
| Zigbee/Z-Wave | Building sensors | No |
| LoRaWAN | Fixed sensors on one site | No |
| LTE-M | Smart meters, waste-bin sensors, GPS trackers | From $0.01 per MB |
| LTE Cat 1 bis | Wearables, point-of-sale terminals | From $0.01 per MB |
| LTE (4G) | Dash cameras, telematics units | From $0.01 per MB |
| 5G | High-bitrate video | Check current coverage |
| Satellite | Assets beyond cellular coverage | No |
Connectivity picker
Every cellular result runs on Telnyx IoT SIM.
IoT SIM, eSIM and eUICC for cellular IoT devices
Each Telnyx IoT eSIM holds several IMSIs and attaches to more than one network per country, so it fails over automatically and is steered to the strongest network. Coverage expands by market, as with IoT SIM in Australia, so check LTE-M per country.
A consumer SIM serves one phone on one carrier, while an IoT SIM is provisioned for data on many networks and managed in bulk. It comes as a removable triple-size SIM, an embedded MFF2 chip or a downloadable eSIM profile, and the choice of embedded MFF2 vs SIM depends on whether anyone can reach the device after installation. The eUICC is the chip that holds profiles and swaps them over the air. Telnyx eSIMs follow the GSMA eSIM specifications SGP.02 and SGP.22 and support BYO-eUICC. New designs should skip 2G-only and 3G-only (second- and third-generation cellular) modems: the three US national carriers shut their 3G networks in 2022.
Pricing: Telnyx IoT data starts at $0.01 per MB with no minimum order quantity. Pricing models include standby mode, data pooling and zone-based billing. See IoT data plans.
Managing an IoT device fleet from one API
The Mission Control Portal and APIs group SIMs, set data limits, assign public or private IP addresses, automate reports and provision eSIM profiles over the air. Fleets can also run on encrypted private IoT networks without custom hardware or firewalls. The monitor-iot-data-usage-nodejs example in the team-telnyx/telnyx-code-examples repository polls every SIM every 300,000 ms by default, and its /sims/:simCardId/usage-summary route warns above 80% of the data limit:
The track-iot-device-location-python example in the same repository returns the carrier and country each SIM last attached to, with no GPS hardware on the device:
Match each device to a connectivity option, multiply its monthly MB by the $0.01 per MB starting rate, then order hardware.
FAQ
Put your IoT devices online from $0.01 per MB
Match each device to the connectivity it needs, then size the fleet on a published per-MB price before you order hardware. One eSIM, 650+ networks in 180+ countries, no minimum order quantity.
