Understanding SIM form factors: A comprehensive guide

Unravel the intricacies of SIM form factors and their role in shaping global connectivity.


By Emily Bowen

Telnyx SIM form factor on neon green background

In the dynamic landscape of telecommunications, the devil is in the details. One such detail that often goes unnoticed but holds significant importance is the form factor of SIM cards.

As developers, heads of engineering, and technical operation managers, having a solid grasp of SIM form factors can help you make strategic decisions about your devices' connectivity. This knowledge enables you to achieve seamless global coverage, efficient device management, and optimal performance.

Dive deeper into our comprehensive guide on SIM form factors and ensure your team is equipped with the insights needed to lead in today's competitive technological environment.

Understanding SIM form factors

The term SIM form factors refers to the physical dimensions of a SIM card. As technology has advanced, SIM cards have evolved, shrinking in size to accommodate mobile devices' changing design and functionality. Today, we have four standard sizes of removable SIMs and the embedded MFF2 SIM. Each form factor has its unique dimensions and use cases, making it suitable for specific types of devices.

SIM form factors comparison

There are four main SIM form factors: Standard SIM (1FF), Mini-SIM (2FF), Micro-SIM (3FF), Nano-SIM (4FF), and embedded MFF2 SIM. Each form factor differs in size and thickness, but the chip itself remains the same across form factors 2FF–4FF.

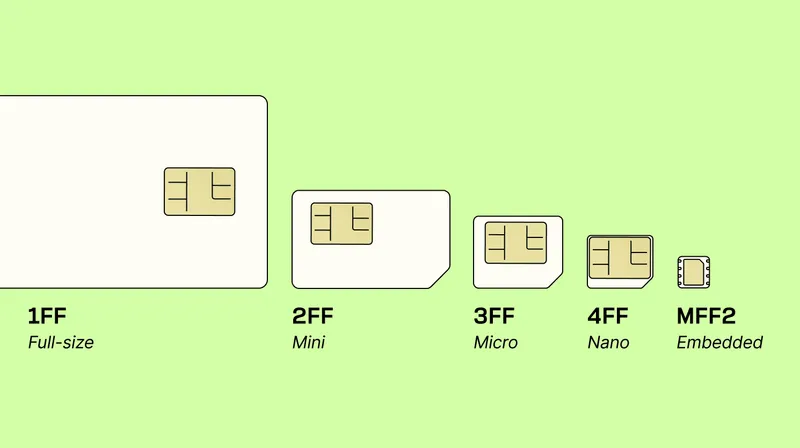

SIM Form Factors types

Here's a quick reference table summarizing the benefits and differences of each SIM form factor:

Standard SIM (1FF)85.60mm × 53.98mm × 0.76mmMostly obsolete, used in early devices
Mini-SIM (2FF)25mm x 15mm x 0.76mmOlder mobile phones, some IoT devices
Micro-SIM (3FF)15mm x 12mm x 0.76mmModern smartphones, tablets, IoT devices
Nano-SIM (4FF)12.3mm × 8.8mm × 0.67mmLatest smartphones, IoT devices
Embedded SIM (MFF2)6mm x 5mmIoT devices, smartphones, wearables, and more

While these resources provide a general overview of the different SIM form factors, choosing a form factor can significantly depend on the specific needs of your industry. Let's explore some industry-specific recommendations to understand this concept better.

Industry-specific recommendations

Choosing the right SIM form factor depends on the specific needs of your industry and the devices you're using.

For instance, in the SaaS industry, where devices like servers and routers are commonly used, larger form factors like the Mini-SIM could be suitable due to their robustness and durability.

On the other hand, in the UC/CC industry, where devices are often compact and portable, smaller form factors like the nano-SIM or eSIM might be more suitable due to their compact size and versatility. For example, a UC/CC device like a portable VoIP phone would benefit from a nano-SIM due to its small size and high functionality.

In industries that use IoT devices scattered across a large geographic area, eSIM is often the best choice. Its ability to be remotely provisioned and managed makes it ideal for large-scale IoT deployments where physical access to each device isn’t feasible.

While choosing a SIM form factor based on industry-specific needs is crucial, it's equally important to consider the security implications associated with each form factor. Let's explore some common security concerns and how you can mitigate them.

Security concerns and mitigation

In the world of IoT connectivity, security is a paramount concern. SIM cards, especially removable ones, can be a point of vulnerability. They can be physically tampered with or even stolen, leading to potential security breaches. Additionally, as the devices are often connected to the internet, they’re exposed to various cyber threats.

One effective way to mitigate these risks is by keeping your devices off the public internet. By doing so, you can significantly reduce the exposure of your devices to potential cyber threats. You can achieve this by using private wireless gateways, which provide a secure, private network for your devices to connect to.

It’s worth noting that the embedded MFF2 SIM is more secure than other form factors because it has to be soldered onto the device circuitry. Therefore it can't be removed as easily as taking a traditional SIM card out of a SIM card slot.

Implementing secure elements (SE) can also provide a secure environment for the storage and execution of sensitive data and applications. Furthermore, robust authentication protocols can prevent unauthorized access to the device and the network, adding an extra layer of security.

The advantages of SIMs

Despite these common—but manageable—security vulnerabilities, SIM cards offer numerous benefits, including global coverage, built-in authentication, and secure connectivity. These advantages make them an integral part of any cellular connectivity device. But the benefits of SIM cards go beyond these basic features.

For instance, multi-carrier SIM cards can connect to over 650 networks in over 180 countries regardless of their form factor. They also feature intelligent network switching, allowing them to switch to the best network available in their location automatically. This feature is particularly beneficial for roaming applications.

The next evolution in SIM functionality is remote provisioning, which we'll discuss in the next section.

The power of remote provisioning

Remote provisioning is a feature that allows over-the-air (OTA) management of SIM profiles. This capability is particularly beneficial for large-scale IoT deployments, as it eliminates the need for physical access to each device to change or update SIM cards.

With remote provisioning, you can download, activate, deactivate, or delete SIM profiles remotely. Remote provisioning simplifies device management and allows for more flexibility. For instance, if a device moves to a different country, you can remotely download and activate a local SIM profile, ensuring optimal connectivity and cost efficiency.

While remote provisioning offers a significant advantage in managing SIM profiles, partnering with a provider that supports various SIM form factors and offers comprehensive connectivity solutions is essential. Let's see how Telnyx stands out in this regard.

How Telnyx supports various SIM form factors

Understanding SIM form factors and choosing the right one for your needs is crucial. But equally important is choosing the right partner to provide your connectivity solutions. Telnyx offers a range of IoT SIM cards and data plans that cater to various industries and use cases.

Our SIM cards provide global coverage, intelligent network switching, and support for remote provisioning, ensuring reliable and high-quality connectivity for your IoT devices in over 180 countries. They’re available in triple-size (Mini, Micro, and Nano) and in the embedded MFF2 form factor.

In addition to these features, Telnyx offers Private Wireless Gateways that protect your devices from vulnerabilities on the public internet. This added layer of security makes our SIM cards an excellent choice for applications that require secure, reliable connectivity.

As you navigate the world of SIM form factors, Telnyx is here to help. We offer a range of solutions that can cater to your specific needs, ensuring that your devices stay connected no matter where they are.

Getting started with Telnyx is simple, thanks to our comprehensive documentation and free, award-winning 24/7 support. By partnering with Telnyx, you can fully leverage IoT connectivity and elevate your operational capabilities.

Talk to a Telnyx expert today and learn how our SIM cards can strengthen your connectivity strategy.
